Solinst Model 615 SS Drive Point Piezometer

Operation Manual

Specifications Sheet

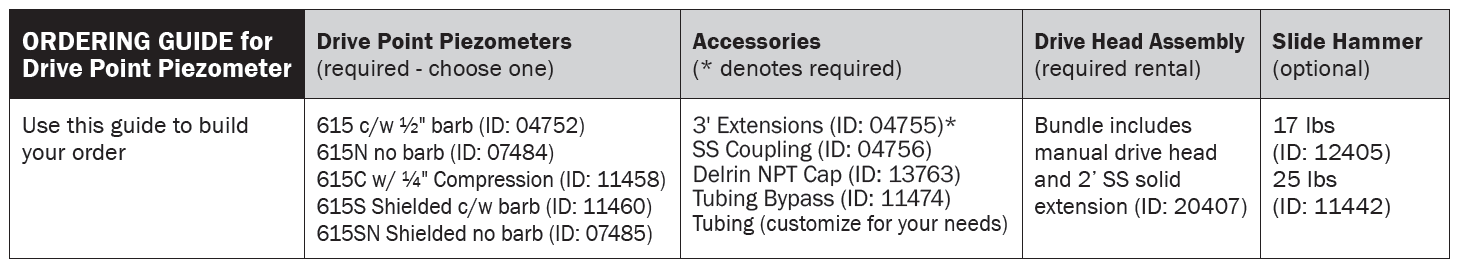

ItemPricePurchase
6" Drive-Point Piezometers (Stainless Steel)
615 Drive Point Piezometer c/w ½" barb #100929 $77 Add to Cart
615N Drive Point Piezometer (no barb) #102841 $73 Add to Cart
615C Drive Point Piezometer w/ ¼" Compression #103160 $117 Add to Cart
615S Shielded Drive Point Piezometer c/w barb #104366 $173 Add to Cart
615SN Shielded Drive Point Piezometer (no barb) #104637 $167 Add to Cart
Drive Point Piezometers Accessories
615 Drive Point Piezometer 3’ Extension $30  Add to Cart
615 Drive Point Piezometer SS Coupling $14 Add to Cart
615 Drive Point Piezometer Delrin NPT Cap $12 Add to Cart
Tubing Teflon-Lined Poly (1/2" ID x 5/8" OD) 100' Roll $305  Add to Cart
Tubing Teflon-Lined Poly (1/4" ID x 3/8" OD) 100' Roll $175  Add to Cart
  Daily Weekly Monthly
Tubing Bypass $5.25 $12.25 $35
  Add to Cart Add to Cart Add to Cart
Drive Head Assembly w/ 2' SS Solid Extension Bundle $22.50 $52.50 $150
  Add to Cart Add to Cart Add to Cart
Slide Hammer
Piezometer Manual Slide Hammer-17 lb. $7.50 $17.50 $50
  Add to Cart Add to Cart Add to Cart
Removal Jack $20.25 $47.25 $135
  Add to Cart Add to Cart Add to Cart

The Solinst Model 615 Drive-Point Piezometer is designed as an affordable method to monitor shallow groundwater and soil vapor in suitable conditions.

Solinst Drive-Point Piezometers can be driven into suitable soils up to 20 to 25 feet (6-7 meters) with any direct push or drilling technology. To avoid clogging or smearing of the screen during installation, a shielded version is also available.

High quality samples from a Solinst Model 615 Drive-Point Piezometer can be easily obtained with the use of a Solinst 410 Peristaltic Pump. The Solinst 410 Peristaltic Pump allows sampling up to the suction lift limit, which can be as much as 33 ft. (10 m) at seal level.

Depth Limitations

Drive-point piezometers are not suitable for all sites. The depth limitations vary, especially with soil conditions and the drive method used.

Applications

  • Groundwater sampling, including VOCs
  • Water level monitoring
  • Base flow monitoring in stream beds
  • Contaminant plume delineations
  • Soil gas sampling
  • UST monitoring
  • Low cost and minimal disturbance site assessment
  • Sparge points

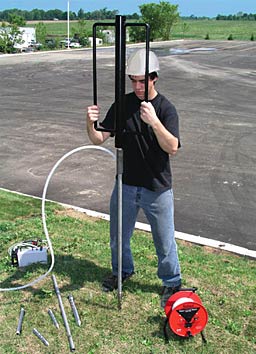

Installing with manual slide hammer
